Centrifugal Impeller CNC Services
Yijin Hardware makes exceptional centrifugal impellers through Usinage CNC. These impellers turn rotating kinetic energy into liquid flow, improving efficiency compared to typical cast components that are also used. We make impeller parts that reach your exact dimensional tolerances and material specs, ensuring less wear-and-tear or repairs.
- ⬤Service
- ⬤Vos coordonnées
- ⬤Soumettre

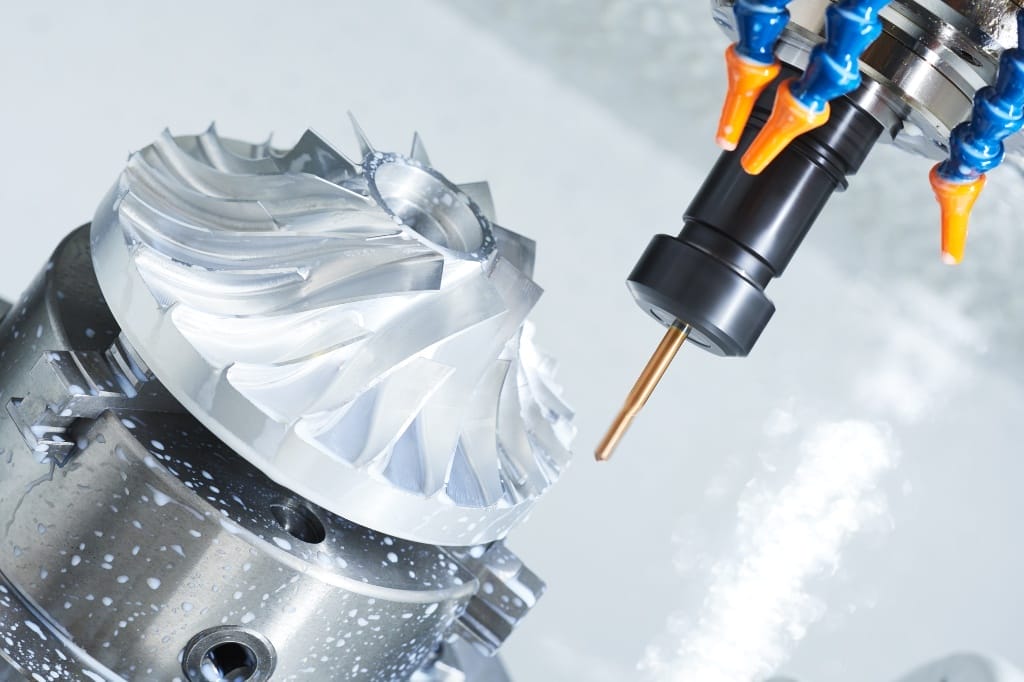

What are Centrifugal Impellers?
Centrifugal impellers are rotating components that churn the velocity and pressure to fluids in centrifugal pumps and compressors. These substanial parts turn rotational energy from motors into hydrodynamic energy. It pushes liquid in circles outward through centrifugal force. Impellers have a huge effect on pump performance and efficiency, which is why precision manufacturing is important.
Who created the centrifugal impeller?
John Appold invented the modern curved vane impeller design in the 19th century, revolutionizing centrifugal pump efficiency. Today’s impeller design uses computational fluid dynamics and Euler’s pump equation to optimize energy transfer from rotating vanes to fluid flow.
Key Design Parameters
- Specific speed: Dimensionless parameter guiding impeller type selection
- Vane geometry: Curved profiles optimized for flow characteristics
- Hub design: Central eye where fluid enters axially
- Discharge angle: Controls velocity vectors and pressure generation
| Impeller Type | Vane Configuration | Efficiency Range | Meilleures applications |
|---|---|---|---|
| Open | No front shroud | 70-85% | High-solids fluids |
| Semi-open | Partial shroud | 75-88% | Objectif général |
| Closed | Full shroud | 80-92% | Clean water systems |

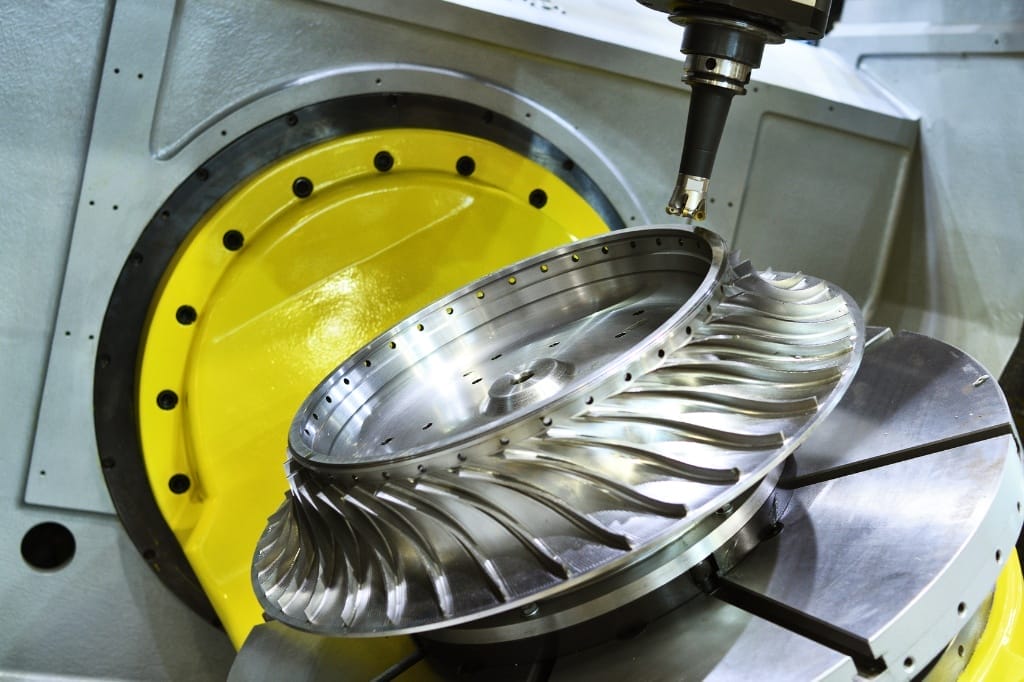

Our Centrifugal Impeller Manufacturing Services
Yijin Hardware manufactures centrifugal impellers using 5-axis CNC machining centers capable of producing complex vane geometries with tolerances to ±0.0005 inches. Our facility handles impeller diameters from 50 mm to 1200 mm, accommodating flow rates from 10 liters per minute to 5000 cubic meters per hour. We machine impellers from pump materials including 316L stainless steel, duplex 2205, bronze alloys, and specialized corrosion-resistant alloys.
Capacités de fabrication avancées
- 5-axis simultaneous machining for complex geometries
- Dynamic balancing to ISO 1940-1 Grade G2.5 standards
- Finition de surface to Ra 32 μin on critical flow surfaces
- Material traceability with complete certification documentation
Patented Design Solutions
We implement advanced impeller hub assemblies with rotatable conical sleeves based on EP 1 331 401 B1 patent technology. These loose conical sleeves reduce inlet blockage and fiber entanglement at the impeller eye, significantly improving reliability in challenging wastewater treatment and industrial applications.
Processus de contrôle de la qualité
Each impeller undergoes coordinate measuring machine inspection, surface roughness verification, and hydraulic performance validation. We provide complete documentation packages with material certificates, dimensional reports, and balancing verification data meeting ANSI specifications.

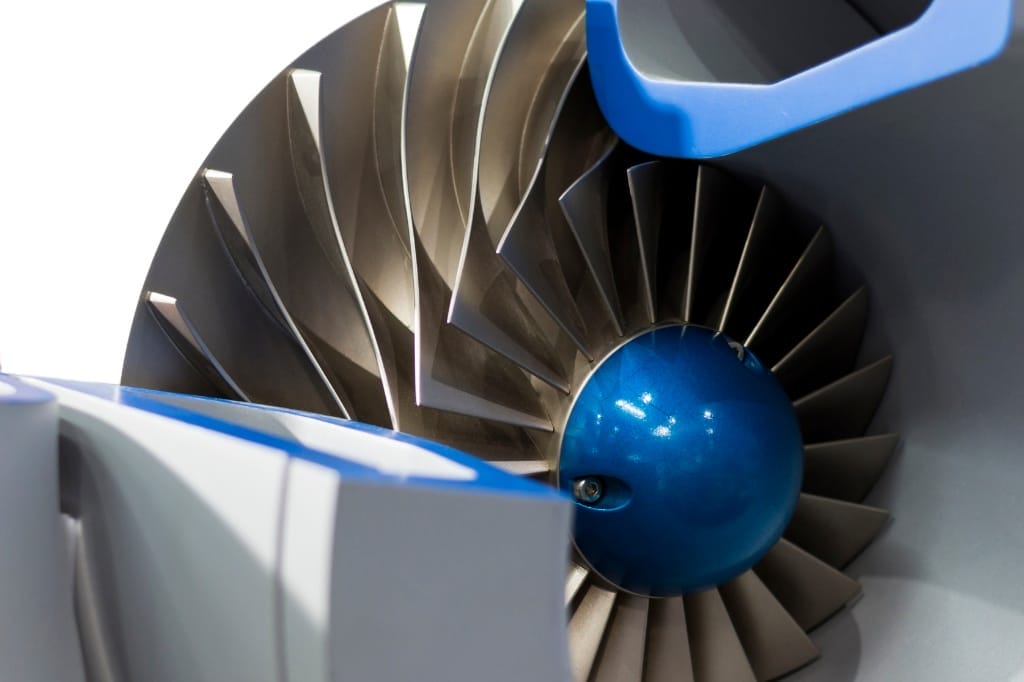

How do We Achieve Superior Impeller Performance?
Yijin Hardware optimizes pump operation through precision vane geometry manufacturing. Our CNC machining creates exact vane curvatures that minimize flow separation and maximize energy transfer efficiency. We machine vane thickness variations that optimize fluid acceleration while maintaining structural integrity under operational stress and operating conditions.
Computational Fluid Dynamics Analysis
- Flow pattern optimization using CFD modeling software
- Velocity profile analysis for vane exit angle determination
- Pressure distribution mapping to minimize cavitation risk
- Turbulence reduction through optimized vane spacing
Performance Enhancement Features
Surface finish quality directly impacts hydraulic efficiency, with our Ra 32 μin finish reducing friction losses compared to standard Ra 63 μin surfaces. Precise vane exit angles control discharge velocity vectors, ensuring optimal interaction with pump volute dessins et modèles for maximum pressure generation and high efficiency performance.

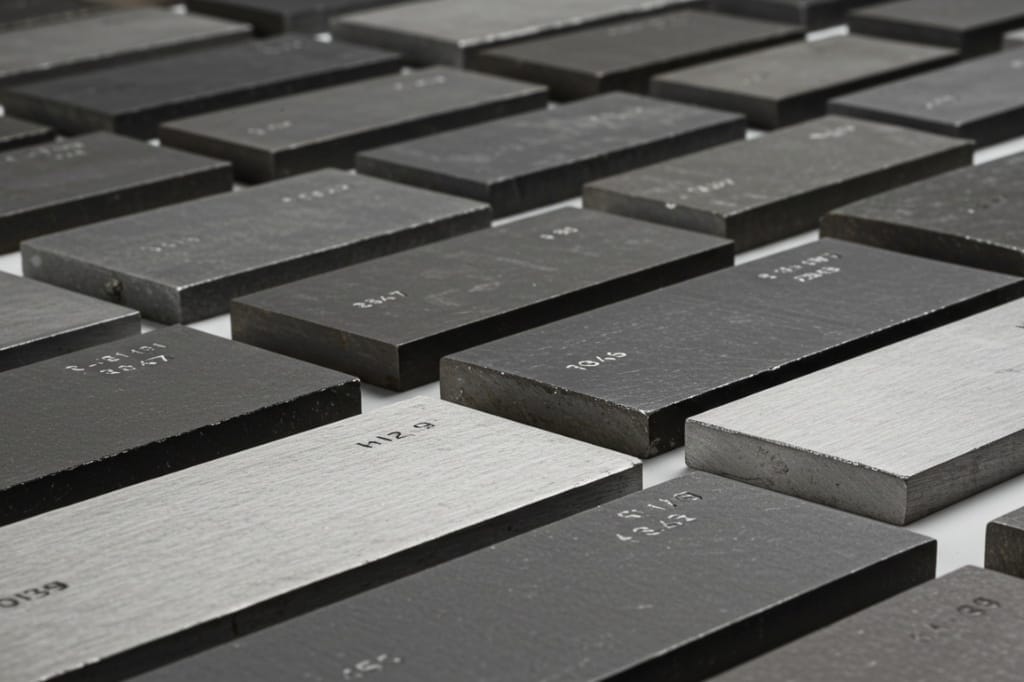

What Materials do We Use for Different Applications?
Material selection determines impeller performance in corrosive, abrasive, or high-temperature environments and application requirements. Yijin Hardware stocks 316L stainless steel for general chemical processing, offering excellent resistance to corrosion from acids, alkalies, and chloride solutions. Duplex 2205 stainless steel provides superior strength and pitting resistance for seawater and brackish water applications.
Specialized Alloy Options
- Hastelloy C-276: Outstanding chemical resistance for extreme environments
- Inconel 625: High-temperature strength to 1093 °C
- Bronze alloys: Cavitation resistance for marine applications
- Cast iron: Durable solution for water supply and municipal applications
Propriétés et applications des matériaux
| Matériau | Résistance à la traction | Résistance à la corrosion | Temperature Limit | Utilisation principale |
|---|---|---|---|---|
| 316L SS | 515-620 MPa | Excellent acids | 816 °C | Traitement chimique |
| Duplex 2205 | 620-880 MPa | Superior chlorides | 315 °C | Seawater systems |
| Hastelloy C-276 | 690-790 MPa | Outstanding chemicals | 1093 °C | Extreme environments |
| Fonte | 200-400 MPa | Good clean water | 450 °C | Municipal water supply |

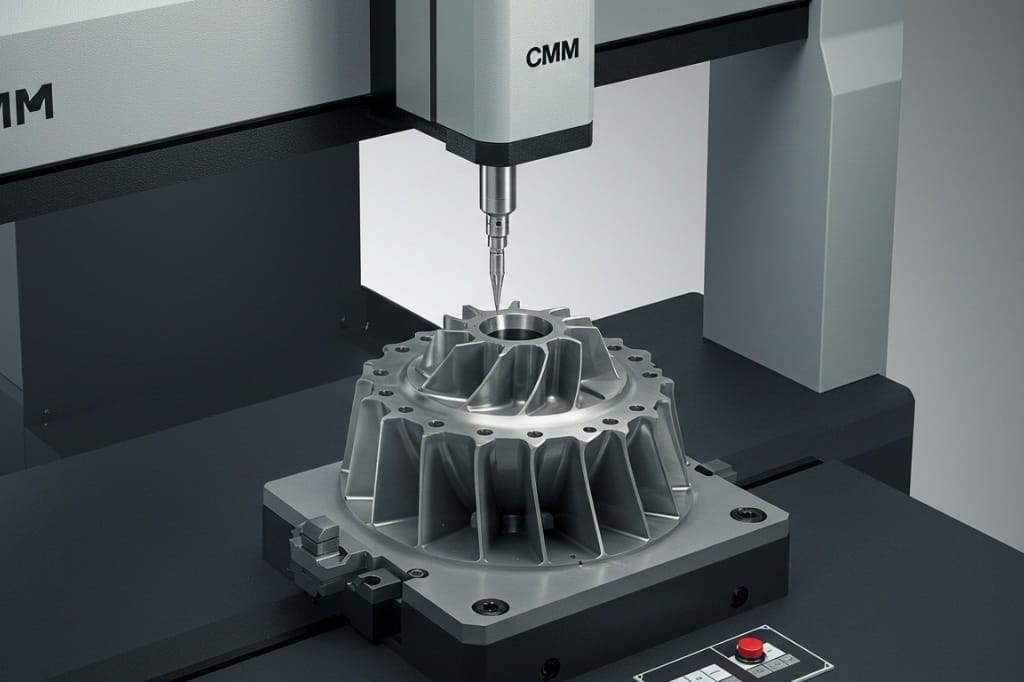

How do We Ensure Quality and Precision?
Quality control at Yijin Hardware begins with incoming material inspection using X-ray fluorescence spectrometry to verify chemical composition compliance. Our coordinate measuring machines achieve measurement accuracy to ±0.00005 inches, ensuring dimensional conformance to API 610 and ISO 5199 specifications. Dynamic balancing equipment corrects mass distribution to eliminate vibration sources that cause premature mechanical seal failure and reduce reliability.
Industry Standards Compliance
- API 610: Petroleum and petrochemical pump specifications
- ISO 5199: Technical specifications for centrifugal pumps
- ISO 9906: Hydraulic performance acceptance tests
- ANSI standards: American National Standards Institute compliance
Inspection and Testing Procedures
Surface roughness measurement using contact profilometers verifies finish quality that directly impacts hydraulic efficiency. We maintain calibrated inspection equipment with traceable standards, ensuring measurement reliability and repeatability across production batches for high-quality results.
Final inspection includes pressure testing where applicable, visual examination for surface defects, and documentation review. Each impeller ships with complete quality packages including material certificates, dimensional reports, surface finish data, and balancing verification records tailored to specific requirements.

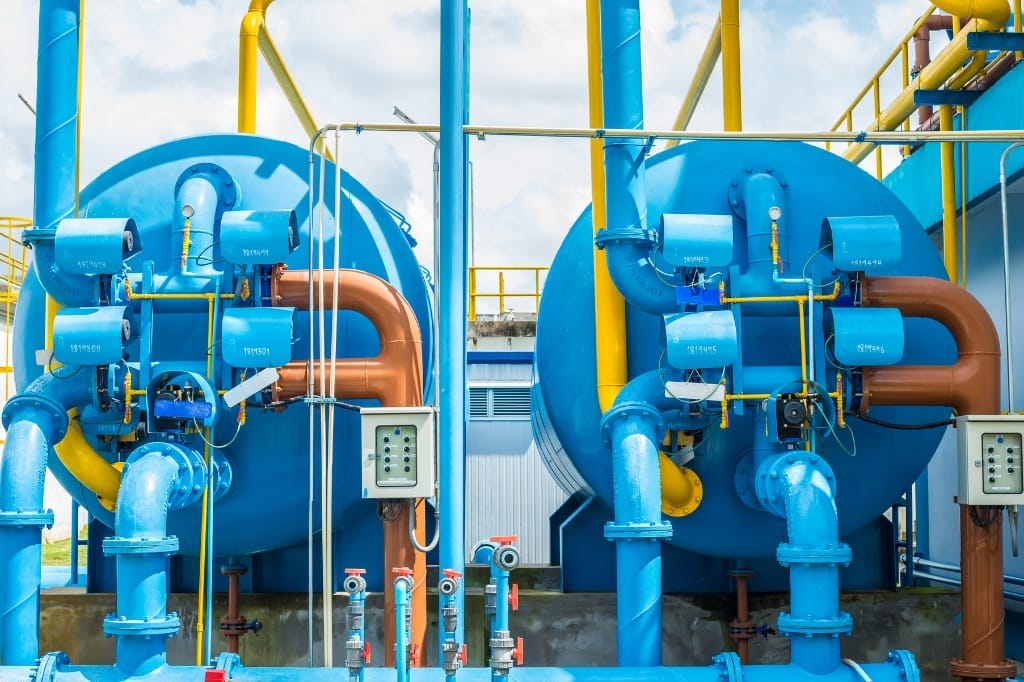

What Industries Benefit from Our Impeller Manufacturing?
Water treatment facilities use our stainless steel impellers in high-service pumps, booster stations, and reverse osmosis systems where corrosion resistance and hydraulic efficiency are critical. Municipal water supply systems require impellers that maintain reliable performance over decades of continuous operation while resisting chlorine-induced corrosion and scale buildup.
Key Application Sectors
- Traitement chimique: Acid and alkali handling systems
- Water distribution: Municipal and industrial water systems
- HVAC systems: Circulation pumps for chilled water and heating
- Agriculture: Irrigation and water supply networks
- Industrial processes: Manufacturing and processing equipment
Performance Requirements by Industry
Chemical processing plants depend on our specialized alloy impellers for handling corrosive media including acids, bases, and organic solvents. Water pump manufacturers use our close-coupled impeller designs for self-priming systems and efficient pumping applications. Industrial equipment manufacturers require impellers with low maintenance requirements and sealing options for diverse operating conditions.

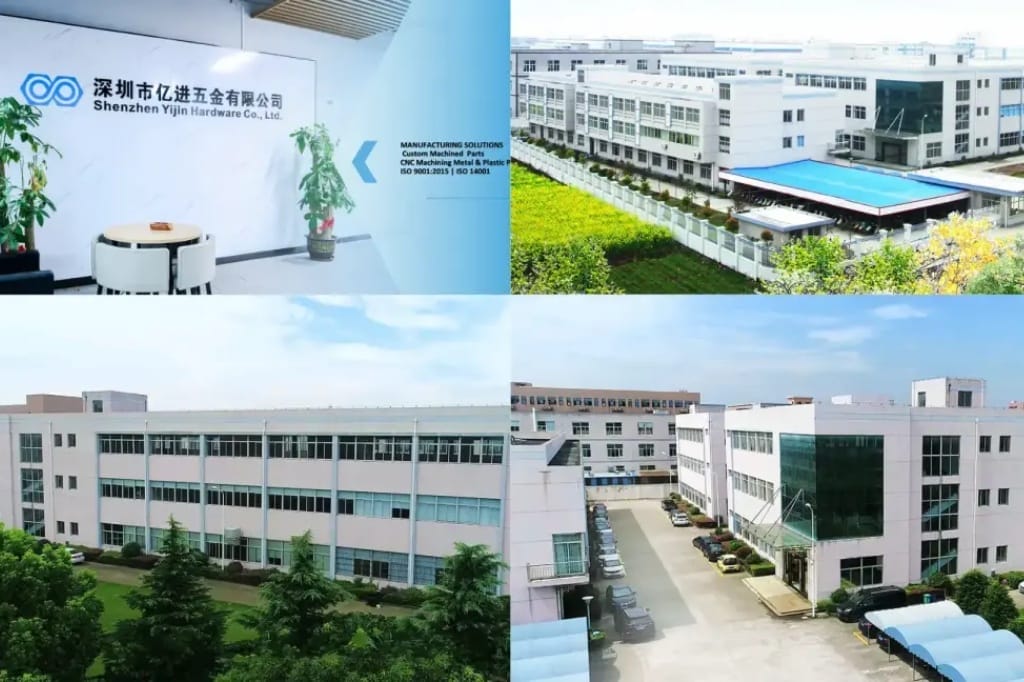

Why Choose Yijin Hardware for Centrifugal Impeller Manufacturing?
Yijin Hardware combines advanced CNC machining capabilities with deep understanding of fluid dynamics to produce impellers that optimize pump performance and reliability. Our 5-axis machining centers create complex vane geometries impossible with conventional manufacturing methods, enabling custom designs for centrifugal pump sizing and maximum efficiency in specific applications. We maintain an extensive material inventory including exotic alloys, ensuring rapid delivery for urgent projects.
Avantages concurrentiels
- Patented hub designs reducing blockage and maintenance
- CFD analysis capabilities for performance optimization
- Exotic matériel expertise, including superalloys and specialty coatings
- Certification ISO 9001:2015 with rigorous quality control
Our engineering team provides technical consultation throughout the design process, offering optimization recommendations based on hydraulic analysis and application requirements. This collaborative approach ensures your impellers deliver maximum performance while meeting budget and timeline constraints. As experienced pump suppliers, we understand the critical relationship between impeller quality and overall system reliability.
Ce que disent nos clients
Centrifugal Impeller Factory FAQs
Advanced CAM strategies, like “opti-through” roughing and multi-axis finishing toolpaths, are essentialf for 3D impeller vanes. The opti-through method uses overlapping 3D cuts to efficiently rough out complex shapes while minimizing tool engagement and reducing wear, which is ideal for the intricate geometry of impellers. For finishing, dynamic multi-axis passes ensure consistent surface quality and dimensional accuracy across curved blades.
Tool wear, whether it’s the flank, crater, or notch, leads to increasing cutting forces, poor surface finishes, and dimensional deviation. In superalloy impeller machining, wear directly limits precision and cycle stability. Effective management includes scheduled inspections, automated wear monitoring systems, and predictive replacement, all of which help maintain tight tolerances and prevent scrap.
Chatter causes visible surface waves, dimensional inaccuracy, and tool/machine stress. It’s mitigated by enhancing rigidity—through stiffer machines, robust tooling, and solid workpiece fixturing—and optimizing cutting parameters like spindle speed and toolpath to avoid resonance frequencies. CAM-assisted approaches, such as maintaining constant chip thickness and using circular interpolation in corners, further suppress vibrations.
